Manhattan Plot for GWAS Results

Plot
Author

Jie Hua

Published

April 14, 2025

Modified

April 14, 2025

参考教程

  1. 思问 & StatisticVision. (2025, March 14). R语言绘图25|Nature曼哈顿图复现 [微信公众号]. R语言绘图25|Nature曼哈顿图复现. https://mp.weixin.qq.com/s/3YlnB3Nm85v3FxE8F67oDw

基本信息

曼哈顿图(Manhattan Plot)是基因组范围内关联研究(GWAS)中常用的可视化工具,用于展示单核苷酸多态性(SNP)与表型之间的关联。它通过在x轴上绘制基因组位置,在y轴上绘制-log10(p-value)来显示每个SNP的显著性水平。

曼哈顿图的特点

  • X轴: 基因组的位置,按照染色体编号和物理位置排列,每条染色体用不同的颜色区分

  • Y轴:用-log10(p-value)表示SNPs的显著性水平,越高表示显著性水平越高

  • 阈值线:图中与X轴平行的一条线,表示不同的显著性水平,分别对应p-value的某些值,比如p<5x10-8

  • 点: 每一个点表示一个SNPs,其高度表示显著性程度

相关脚本

通过 Listing 1 加载了需要用到的的 R 包。

Listing 1: Load required packages
library(ggplot2)
library(dplyr)

生成模拟数据

set.seed(42)
data <- data.frame(
  SNP=paste0("rs",1:10000),
  CHR=rep(1:22, length.out=10000),
  BP=sample(1:1e6, 10000),
  P=runif(10000)
)
First 6 rows of the demo data
SNP CHR BP P
rs1 1 61413 0.4715924
rs2 2 54425 0.5765097
rs3 3 623844 0.2229165
rs4 4 74362 0.3966966
rs5 5 46208 0.3641330
rs6 6 964632 0.6577111

计算-log10(p-value)

data <- data %>%
  mutate(logP = -log10(P))
First 6 rows of the demo data
SNP CHR BP P logP
rs1 1 61413 0.4715924 0.3264332
rs2 2 54425 0.5765097 0.2391934
rs3 3 623844 0.2229165 0.6518579
rs4 4 74362 0.3966966 0.4015415
rs5 5 46208 0.3641330 0.4387400
rs6 6 964632 0.6577111 0.1819648

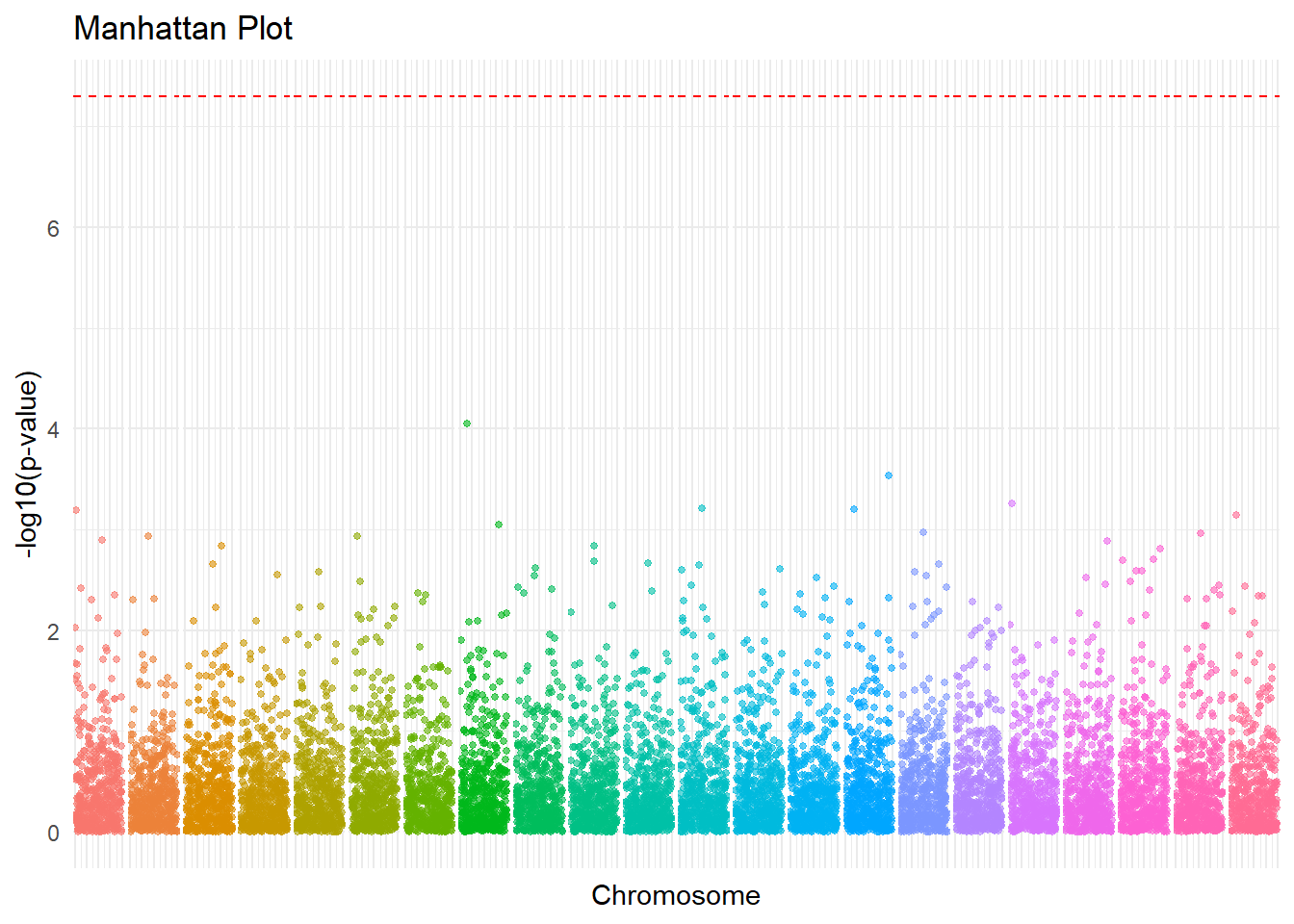

画图展示相关的数据

ggplot(data, aes(x=BP, y=logP, color=as.factor(CHR)))+
  geom_point(alpha = 0.6, size = 1)+
  facet_grid(. ~ CHR, scales = "free_x", space = "free_x")+
  geom_hline(yintercept = -log10(5e-8), linetype = "dashed", color = "red")+
  labs(title = "Manhattan Plot",
       x = "Chromosome",
       y = "-log10(p-value)",
       color = "Chromosomes" ) +
  theme_minimal() +
  theme(strip.text.x = element_blank(),
        panel.spacing.x = unit(0.1, "lines"),
        axis.text.x = element_blank(),
        legend.position = "none")
